Sigma-Aldrich COi8DFIC

产品概述

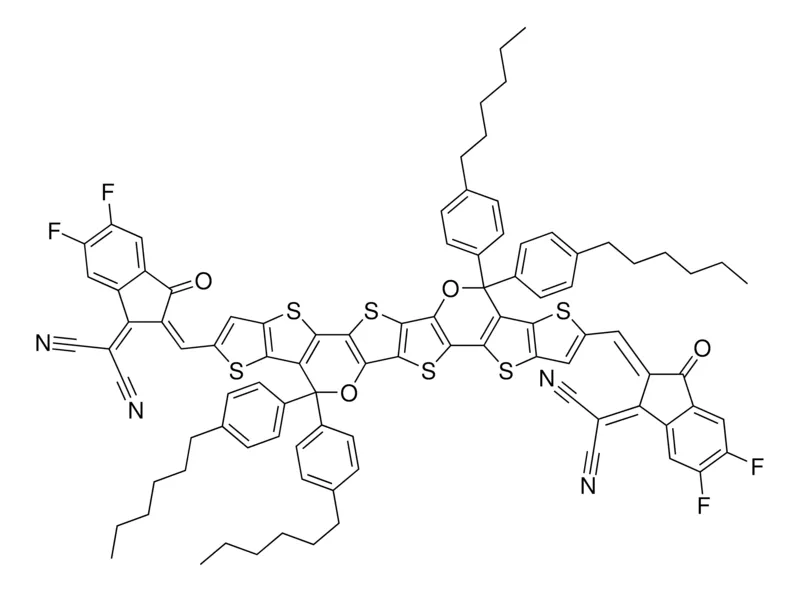

COi8DFIC or O6T-4F is a highly efficient, n-type, low-bandgap nonfullerene acceptor with strong NIR absorptionPMID 30093603.
In a recent study, COi8DFIC or O6T-4F was selected in a Tandem cell by computer assited design and gave a record PCE of 17.3∃% for fabricated organic solar cells.PMID 30093603
COi8DFIC or O6T-4F is frequently selected to blend with a narrow-bandgap donor material and another narrow bandgap acceptor material to fabricate ternary organic solar cells. The PTB7-Th:COi8DFIC:PC71BM ternary cells offered a PCE of 14.08%. By further adopting a post-annealing process, an outstanding PCE of 14.62% can be achieved. Furthermore, the device utilizing COi8DFIC exhibited a good thermal stability with PCEs over 13.5% in a wide temperature range (70–160 °C).

应用领域

COi 8DFIC是一种高效的非富勒烯受体材料，具有很强的近红外吸收，可作为n型小分子受体材料用于聚合物太阳能电池的制备。

COi 8DFIC主要用作OPV器件中的非富勒烯受体。它具有宽的吸收光谱，使其能够吸收包括可见光和近红外区域在内的宽范围波长的光。该特性允许有效利用更宽范围的太阳辐射，提高了OPV器件的光捕获能力。COi 8DFIC可用作OFET器件的电子传输材料。

CO 18 DFIC或O 6 T-4F是一种高效、n型、低带隙的非富勒烯受体，具有强的NIR吸收。在最近的研究中，通过计算机辅助设计在串联电池中选择CO 18 DFIC或O 6 T-4F，并且对于制造的有机太阳能电池给出了17.3%的记录PCE。PC 71 BM/MoO 3 /Ag Voc = 1.642V Jsc = 14.35mA/cm 2 FF= 73.7%PCE = 17.3%CO18DFIC或O 6 T-4F经常被选择与窄带隙供体材料和另一种窄带隙受体材料共混以制造三元有机太阳能电池。COi 8DFIC：PC 71 BM三元电池的PCE为14.08%，通过进一步采用后退火工艺，可以实现14.62%的优异PCE。利用CO 18 DFIC的器件表现出良好的热稳定性，在宽的温度范围内PCE超过13.5%。器件结构：ITO/ZnO/PTB 7-Th：CO 18 DFIC：PC 71 BM/MoO 3 /Ag退火前Voc = 0.702VJsc = 27.74mA/cm 2 FF= 0.701PCE = 13.65%80 °CV退火后Voc = 0.7 27 V J sc =27.39 mA/cm 2 FF=0.734 PCE=14.62%

技术规格
