| 货号 | 包装规格 | 操作 |
|---|---|---|
| 906824-100MG | 100 mg |
≥98%

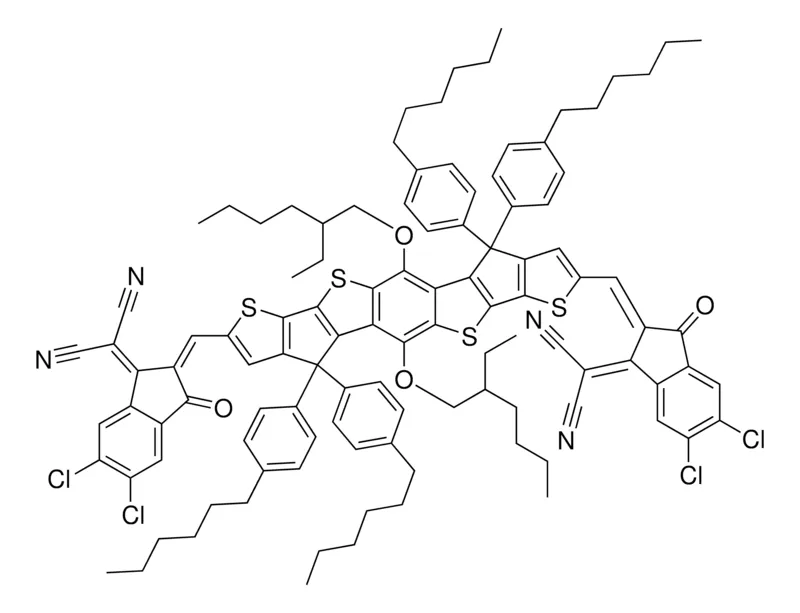

BT-CIC is a highly efficient, ultra-narrow bandgap, NIR absorbing, non-fullerene acceptor, designed to use in high performance organic photovoltaic devices.
A recently reported tandem cell, employing BT-CIC as the non-fullerene acceptor and PCE-10 as donor for the back cell showed an PCE of 15%.
Device performance:
Tandem [Front] (170 nm DTDCPB:C70 + ARC) [Back]PCE-10:BTCIC (1:1.5, 75 nm)
Jsc=13.3 ± 0.3 mA/cm2
Voc=1.59 ± 0.01 V
FF=0.71± 0.01
PCE=15.0% ± 0.3%
ARC:an antireflection coating
| 英文名称 | BT-CIC |
| CAS 号 | 2197167-51-2 |
| 经验分子式 | C110H110Cl4N4O4S4 |
| 分子量 | 1822.15 |
| MDL 号 | MFCD32672258 |
| UNSPSC | 12352101 |
| NACRES | NA.23 |
| InChI key | QKGHNUQLBFDZDZ-ROMINNPJSA-N |
| InChI | 1S/C110H110Cl4N4O4S4/c1-9-17-23-27-33-69-37-45-75(46-38-69)109(76-47-39-70(40-48-76)34-28-24-18-10-2)87-55-79(53-85-93(73(61-115)62-116)81-57-89(111)91(113)59-83(81)99(85)119)123-103(87)107-97(109)95-101(121-65-67(15-7)31-21-13-5)106-96(102(105(95)125-107 |
| SMILES字符串 | [s]1c2c(c%10c1c%11[s]c(cc%11C%10(c%15ccc(cc%15)CCCCCC)c%14ccc(cc%14)CCCCCC)\C=C%12/C(=O)c%13c(cc(c(c%13)Cl)Cl)C/%12=C(C#N)C#N)c(c3[s]c4c(c3c2OCC(CCCC)CC)C(c7c4[s]c(c7)\C=C8\C(=O)c9c(cc(c(c9)Cl)Cl)C\8=C(C#N)C#N)(c6ccc(cc6)CCCCCC)c5ccc(cc5)CCCCCC)OCC(CCCC)C |
| 描述 | 带隙：1.4 eV;溶解度：CB和ODCB |
| 含量测定 | ≥98% |
| 形态 | 固体 |
| 溶解性 | 氯仿：可溶 |
| 轨道能量 | HOMO-5.5 eV; LUMO-4.1 eV |
| 包装规格（货号 906824-100MG） | 100 mg |
