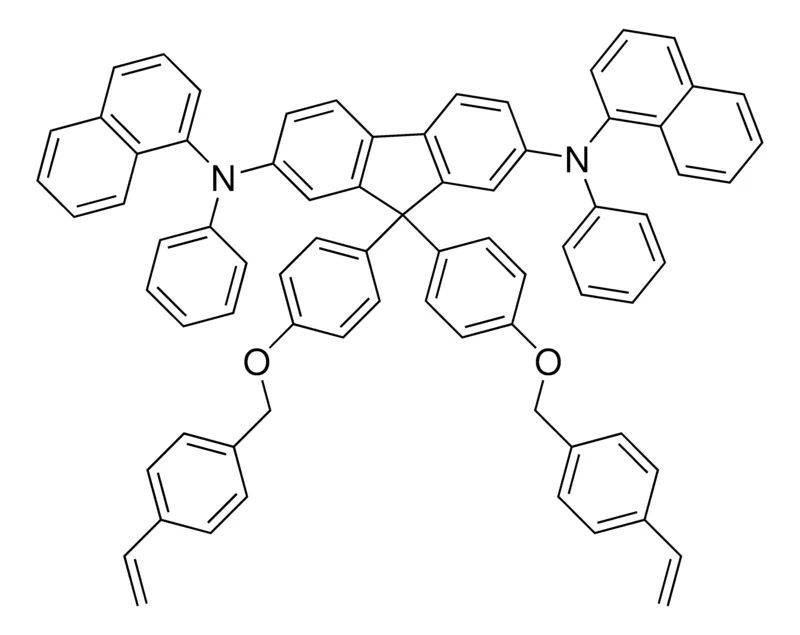

![Sigma-Aldrich 9,9-Bis[4-[(4-ethenylphenyl)methoxy]phenyl]-N2,N7-di-1-naphthalenyl-N2,N7-diphenyl-9H-Fluorene-2,7-diamine，≥98%（HPLC）](/img/sigma/181511-1.webp)
| 货号 | 包装规格 | 操作 |
|---|---|---|
| 932019-250MG | 250 mg |
≥98%（HPLC）
9,9-Bis[4-[(4-ethenylphenyl)methoxy]phenyl]-N2,N7-di-1-naphthalenyl-N2,N7-diphenyl-9H-Fluorene-2,7-diamine, also known as VB-FNPD, is a solution-processable crosslinkable Hole Transport / Hole Injection Layer (HTL / HIL) material popularly used in optoelectronic devices, such as quantum-dot light-emitting diodes (QD-LEDs) [1], and perovskite light-emitting diodes (PeLEDs) [2,3].For instance, it was shown that thermally crosslinkable VB-FNPD is a great candidate for the HTL of QD-LEDs [1]. Device with VB-FNPD HTL crosslinking at 170 °C has the highest luminance of 7702 cd/m2, the maximum c.d. (J) of 41.98 mA/cm2, the maximum current efficiency (CE) of 5.45 Cd/A, and the maximum external quantum efficiency (EQE) of 1.64%.VB-FNPD was also successfully used as hole-transporting material in PeLEDs to to improve the hole-injection efficiency of PeLEDs [2,3].
| 英文名称 | 9,9-Bis[4-[(4-ethenylphenyl)methoxy]phenyl]-N2,N7-di-1-naphthalenyl-N2,N7-diphenyl-9H-Fluorene-2,7-diamine |
| CAS 号 | 1173170-48-3 |
| 经验分子式 | C75H56N2O2 |
| 分子量 | 1017.26 |
| MDL 号 | MFCD35092880 |
| NACRES | NA.23 |
| UNSPSC | 12352116 |
| 描述 | 空穴传输层 |
| 含量测定 | ≥98%（HPLC） |
| 溶解性 | 氯仿：可溶;二氯甲烷：可溶;甲苯：可溶 |
| λmax | 二氯甲烷中354 nm±5 nm;二氯甲烷中378 nm±5 nm |
| 荧光 | λem 489 nm±10 nm，二氯甲烷溶液 |
| 轨道能量 | HOMO 5.3 eV; LUMO 2.3 eV |
| 质量等级 | 100 |
| 包装规格（货号 932019-250MG） | 250 mg |
