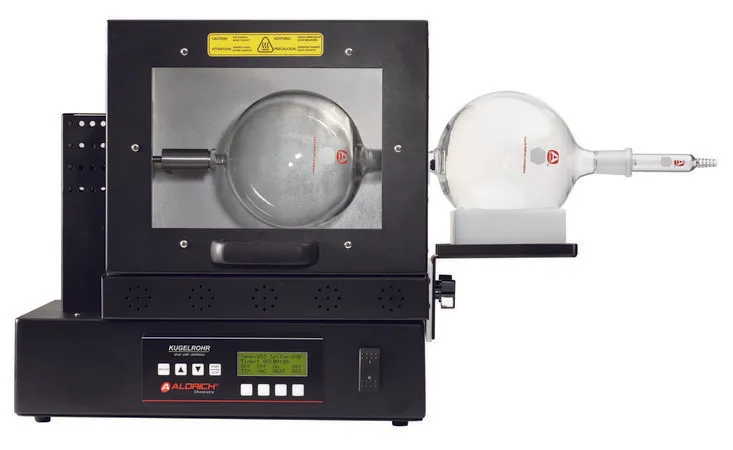

Sigma-Aldrich Aldrich® Kugelrohr™ short-path distillation apparatus，AC/DC输入230 V AC，欧式2针插头

产品概述

"Quickly Distills Difficult Materials with Minimal Hold-up and Loss"
High Vacuum Capability and Safe Front Loading Design

Distillation Applications:
Heat-sensitive compoundsLiquids and low-melting solids from polymers and tarsRemoves color and particulatesSuitable for sublimation and solvent evaporation
Features:

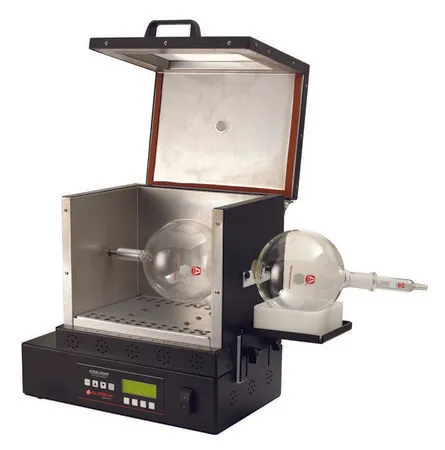

Air bath oven distills up to 230°C25 mL to 2 L flask capacityFront Loading oven door with safety glass viewing windowInterchangeable PTFE support bearings for flask joint 14/20Digital, thermocouple temperature controlFront panel with controls for temperature, vacuum and motor driveAdjustable receiving flask cooling bathOscillating drive motor
Specifications:
Oven flask size range: 25 mL to 2 LHeating range: ambient to 230°C, +/- 3°C across span after stabilizationPower: 120/240 VAC +/- 10%, 50/60 Hz +/- 3%, detachable power cordFuses: Heater 7.5 A, Vac 2.5 A, Power input 10 AHeater: 900 WSize: 25 in. W x 11 in. D x 18 in. H, (30 in. clearance required with door open)Rotation: 270 deg each directionOperating environment: 32 to 40°C, 0 to 90% RH, noncondensingCE, WEEE and RoHS complilant
Ordering Note: Purchase Kugelrohr glassware separately.

Note: A trap between the receiving flask/s and vacuum pump is recommended.
Applications related to marijuana extraction/production are not supported.

Typical operation:

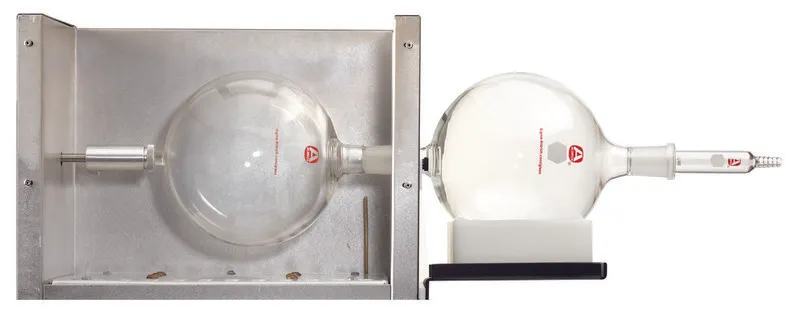

Step 1. Fill the load (oven) flask (25 mL to 2 L) one-third full with distillable material. Connect the load flask to the motor drive coupling inside the oven. Connect the load flask to a horizontal receiving flask outside the oven. Connect a straight tube to the receiving flask and to a vacuum source with rubber tubing.

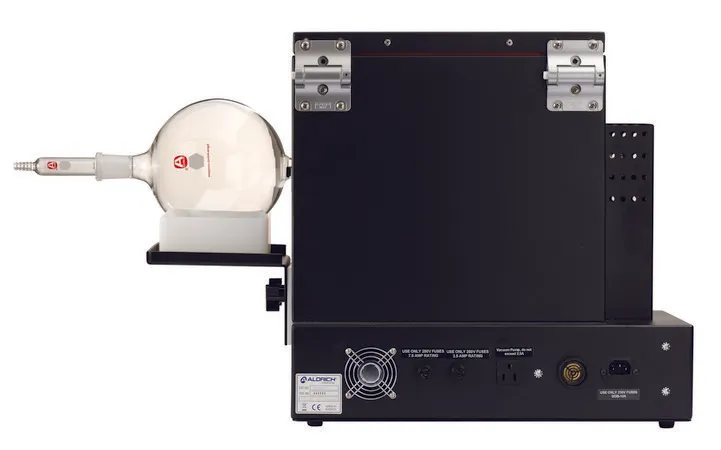

Step 2. A vacuum pump may be plugged into the receptacle on the rear of the oven and switched on and off from the Kugelrohr front control panel.
Step 3. Fill cooling tray with ice.
Step 4. Turn on the Kugelrohr main power switch. Set the distillation temperature on the front control panel, turn on the motor drive and vacuum pump.
Step 5. Collect distillate in the horizontal receiving flask outside the oven.
